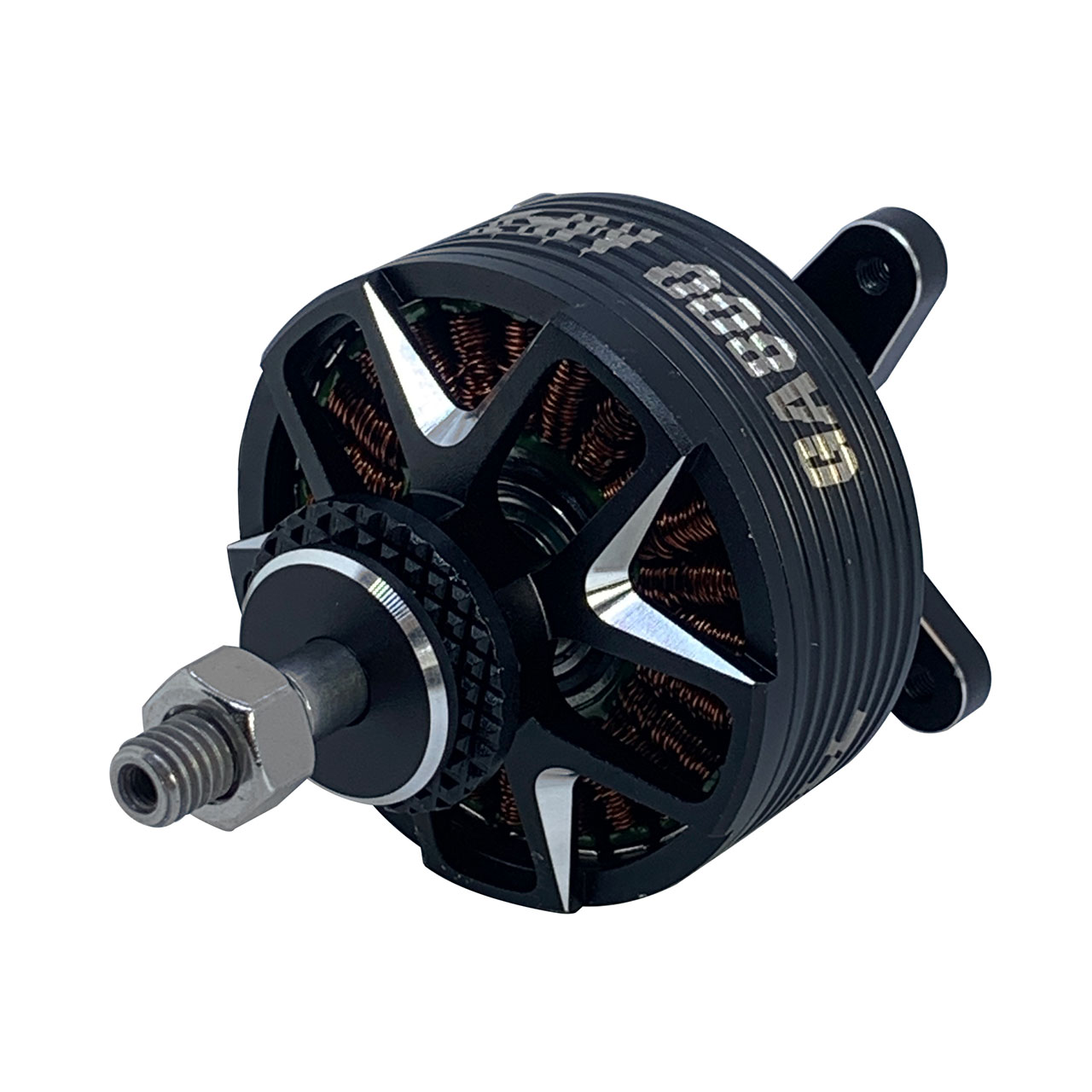

Dualsky GA800.15 MKII X-Motor

Click On Images to Enlarge

Overview

GA800.15 MKII 810KV X-Motor for 30E F3A/48in-52in 3D Airplane.

Model:	GA800.15 MKII
KV:	810
Weight:	172g

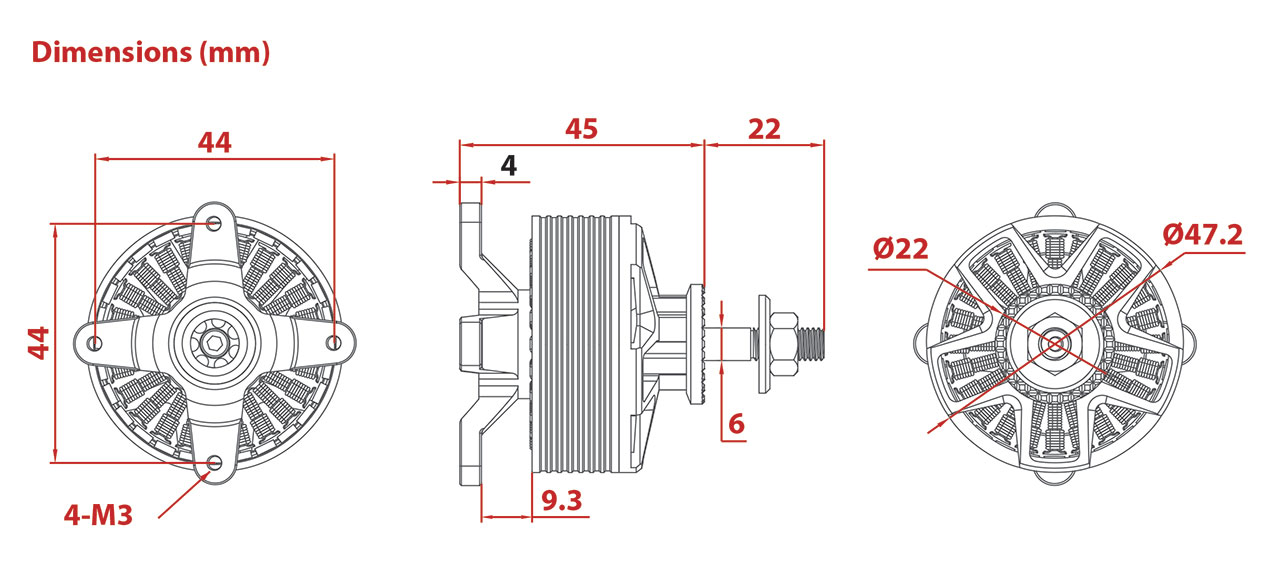

Dimensions (mm):	D47.2 x L45
Overall Length (mm):	67
Diameter of Shaft (mm):	6
Spec. Of Mounting Holes:	44
Slots & Poles:	27, 28
Io@10V (A):	2.2
Ri(mOhm):	21
No. of Cells (LiPo):	14.8V, 4S LiPo
Peak Power (15S) (W):	770
Burst Current (15S) & Peak Torque:	52A, 0.77N*M
Cruising Power (8 mins) (W):	335
Recommended ESC*:	SUMMIT 60X
Recommended Propeller:	12 x 6 for best efficiency, 13 x 6 for peformance pilots, 14 x 6¹ for extreme thrust
Weight of sports airplane:	Up to 2.0kg
Weight of 3D airplane:	1.4kg to 1.6kg
Application:	30E Class F3A \| 48in to 52in Wingspan 3D Airplane

¹ Good throttle management needed

* Third-party brand ESCs must support 28P disc motors, recommended timing: 20°+ (High Timing)

Order Code: DUA134
Manufactured By Dualsky
