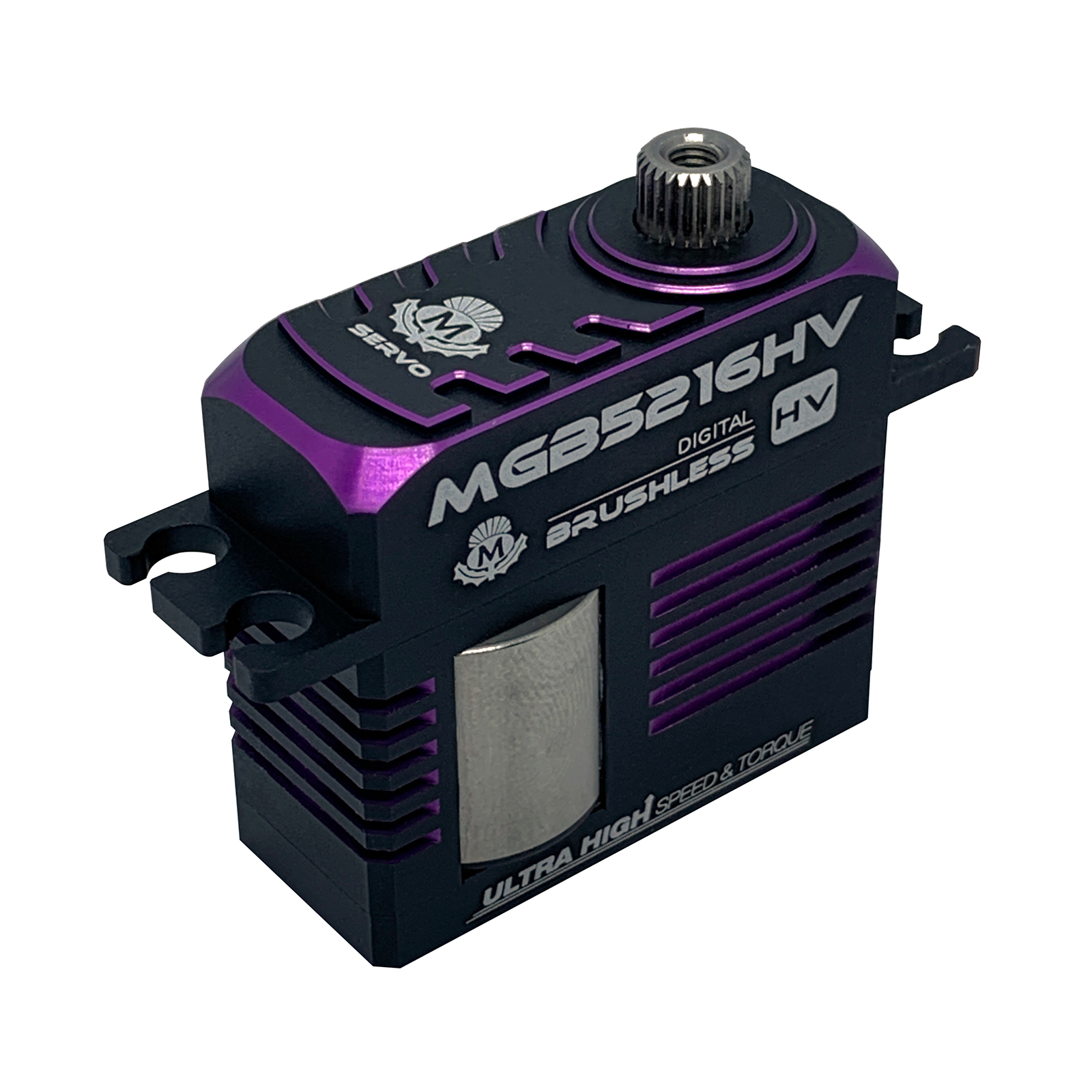

MGB5216HV 16.0kg/0.08s Brushless High Voltage Servo
Buy On Hobbyplastic.co.uk
Find Your Local MacGregor Stockist
Click On Images to Enlarge
Overview
Features:
- High performance digital mini servo
- High-precision steel gear
- High quality brushless motor
- Full CNC aluminium hulls and structure
- Dual ball bearings
- Slow Start
- Super long life
- 25T (Futaba Type) Spline
- JR style plug
Description:
The MGB5216HV is a ultra high speed and torque brushless midi digital servo, part of MacGregor's range of high voltage servos designed for General use in RC Jets, Aeroplanes, Cars & Helicopters.
MacGregor's HV servos are designed with motors and electronics that operate off the direct voltage of a 2-cell Li-Po, Li-Ion, or Li-Fe receiver battery pack. This eliminates the need for a regulator and lowers the chance for a power failure that can cause a catastrophic failure of your model. Also note that the HV servo specs are shown at the higher voltage (8.4V 2S LiPo) but will still operate on a standard 5-cell 6V NiCd, Ni MH battery with a reduction in performance of approximately 10% in speed and torque.
Specifications:
| Dead band: | 2µs default |
|---|---|
| Working frequency: | 1520µs / 330hz |
| Motor: | Brushless Motor |
| Gearset: | Steel |
| Spline: | 25T |
| Operating Voltage: | 5.0 ~ 8.4V |
| Operating Speed (5.0V): | 0.14sec/60° |
| Operating Speed (6.0V): | 0.11sec/60° |
| Operating Speed (7.4V): | 0.09sec/60° |
| Operating Speed (8.4V): | 0.08sec/60° |
| Torque (5.0V): | 10.5kg.cm |
| Torque (6.0V): | 11.5kg.cm |
| Torque (7.4V): | 15.0kg.cm |
| Torque (8.4V): | 16.0kg.cm |
| Dimensions: | 36 x 15 x 33mm |
| Weight: | 52g |
| Connector Wire Length: | 220mm |
| Bearing: | 2BB |
