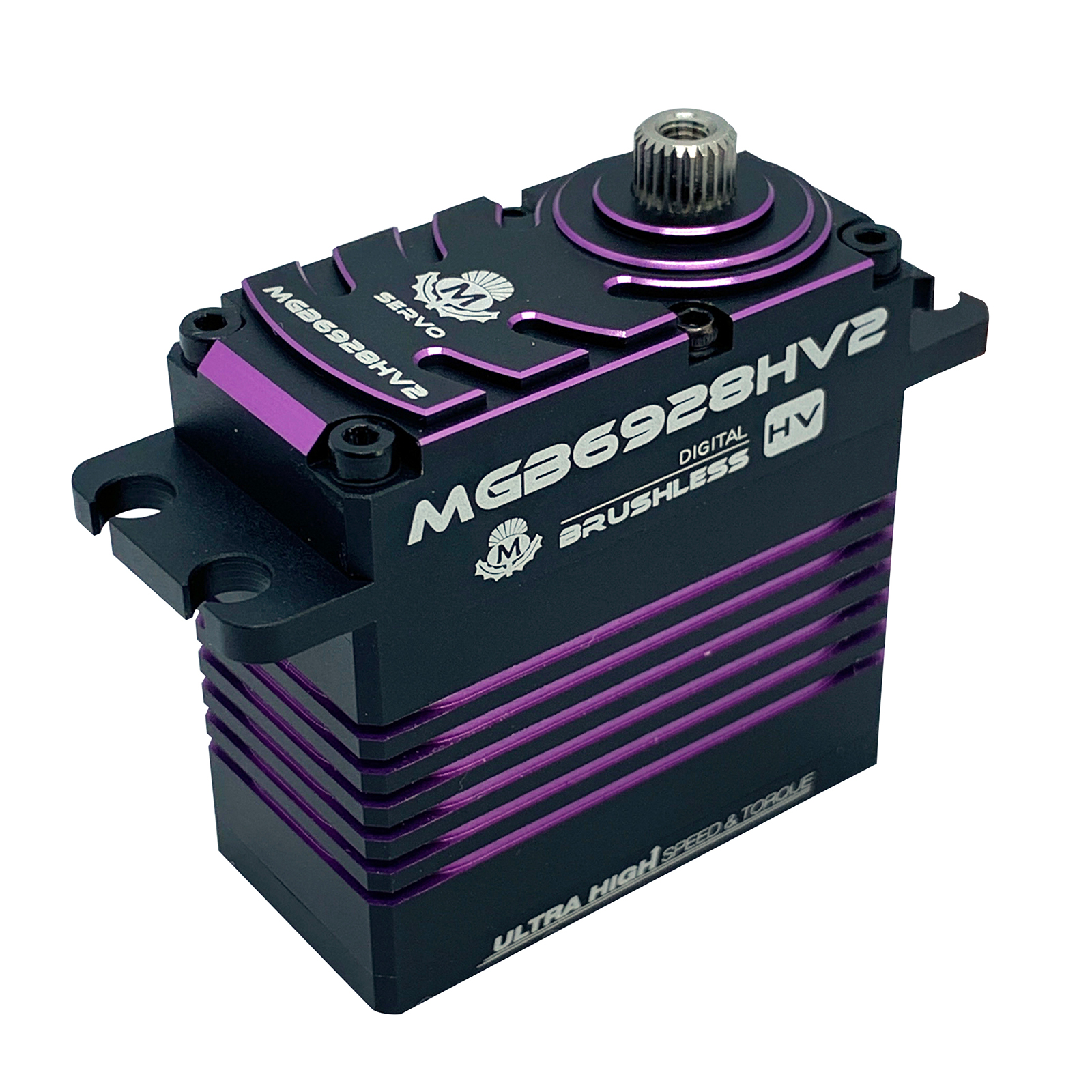

MGB6928HV2 28Kg/0.05s Brushless High Voltage Servo
Buy On Hobbyplastic.co.uk
Find Your Local MacGregor Stockist
Click On Images to Enlarge
Overview
Features
- High Performance, Standard Size, High Voltage Digital Servo
- High-Precision Steel Gear
- Long-life Potentiometer
- Full CNC Aluminium Case (Anodised Purple)
- High Quality Brushless Motor
- Dual Ball Bearing
- Waterproof
- Suitable for 1/8,1/10 Nitro Car, upto 60CC Aeroplane, 600-800 Class Helicopter CCPM
Description
The MGB6928HV is a waterproof ultra high speed and torque brushless digital servo, part of MacGregor's range of high voltage servos designed for General use in RC Aeroplanes, Cars & Helicopters.
MacGregor's HV servos are designed with motors and electronics that operate off the direct voltage of a 2-cell Li-Po, Li-Ion, or Li-Fe receiver battery pack. This eliminates the need for a regulator and lowers the chance for a power failure that can cause a catastrophic failure of your model. Also note that the HV servo specs are shown at the higher voltage (8.4V 2S LiPo) but will still operate on a standard 5-cell 6V NiCd, Ni MH battery with a reduction in performance of approximately 10% in speed and torque.
Specifications
| Dead band: | 2µs |
|---|---|
| Working frequency: | 1520µs / 330hz |
| Motor: | Brushless Motor |
| Gearset: | Full Metal |
| Spline: | 25T |
| Operating Voltage: | 5.0 ~ 8.4V |
| Operating Speed (7.4V): | 0.06sec/60° |
| Operating Speed (8.4V): | 0.05sec/60° |
| Stall Torque (7.4V): | 22kg.cm |
| Stall Torque (8.4V): | 28kg.cm |
| Dimensions: | 40 x 20 x 39.8mm |
| Weight: | 89g (3.13oz) |
| Connector Wire Length: | JR 300mm |
| Bearing: | 2BB |
Related Products
Order Code: MACB6928HV2
Manuals/Downloads
